1570 cim "Communication interface module"
1570 CIM COMMUNICATIONS INTERFACE MODULE
The GSI 1570 CIM Communications Interface Module is a data concentration and gateway device between one or more host systems. It has multiple communication ports that can be configured for a variety of electrical interfaces and communication protocols depending on the application requirements, including multiple and redundant host configurations.
The Communications Interface Module polls all of its field devices (regardless of electrical interface and protocols). It stores the data from those instruments in its internal memory for access by the host systems. It is organized in a consistent, well-defined manner regardless of the characteristics of the actual field devices supplying that information.
A local LCD display shows the communication status and critical data (e.g. level and temperature) from each device.
Theory of Operation

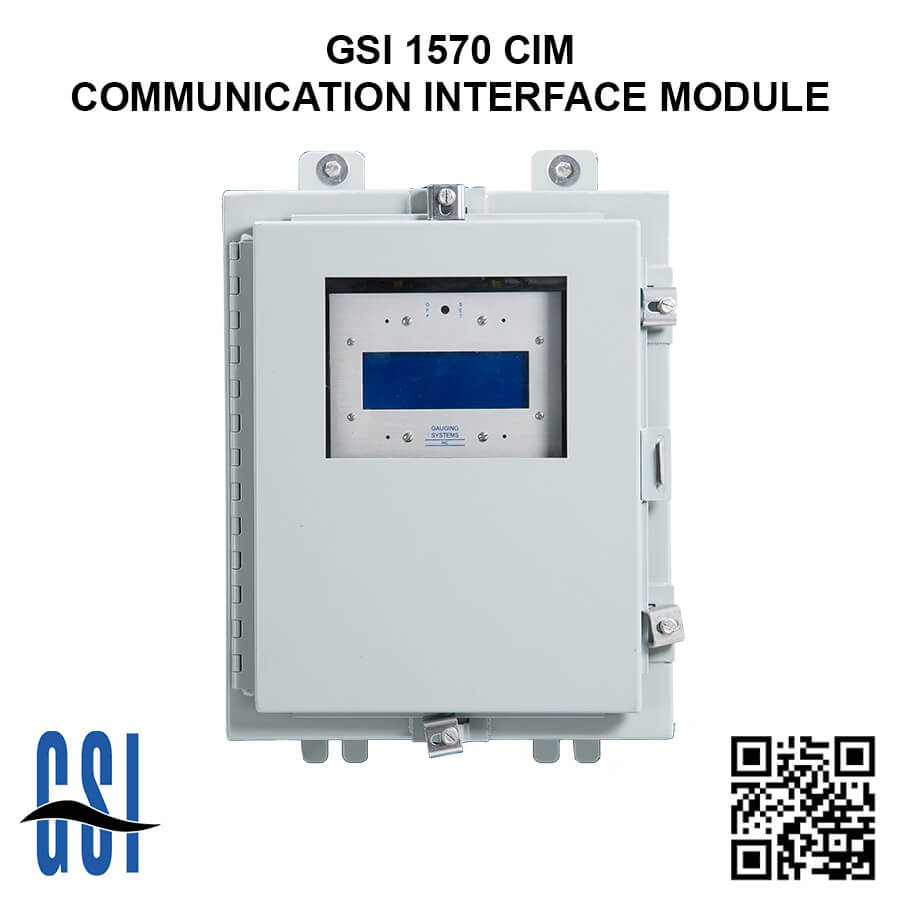

The 1570 CIM is packaged in a panel-mounted or DIN-rail mountable “biscuit assembly” consisting of a GSI 6302 CIM circuit board and a 4×20 LCD display. This biscuit assembly can be installed in a variety of enclosures depending on the application requirements, including explosion proof NEMA 7 enclosures for hazardous environments or NEMA 4/12 enclosures for indoor or non-hazardous outdoor environments.
The 1570 Communications Interface Module has built-in capability for RS232, RS485, and 10/100BASE-TX Ethernet connectivity. It can also be equipped with 10/100BASE-FX (fiber optic Ethernet) communication via an optional copper-to-fiber converter. Similarly, the 1570 CIM can also be provided with a variety of wireless communication devices (WiFi, Mesh, Broadband, Cellular, etc.).
The 1570 CIM can also be packaged with various power supplies, barriers, surge protection, UPS, topology converters, and other equipment as required by the specific application.
Contact GSI for optimal configuration guidance. Click to fill out our CIM Questionnaire Form.
Applications
- Varec® 8130 RTU Replacement (1570-8130R)
- Tank Farm Communications (Instruments and Host)
- Protocol or Topology Converter
- Tank Data Display
- Increases Data Refresh Rates in Tank Farms

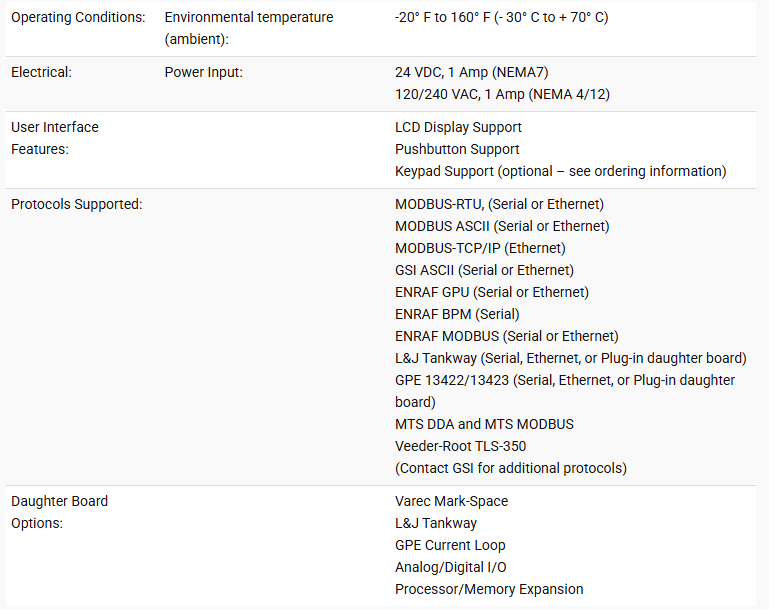

SPECIFICATIONS
